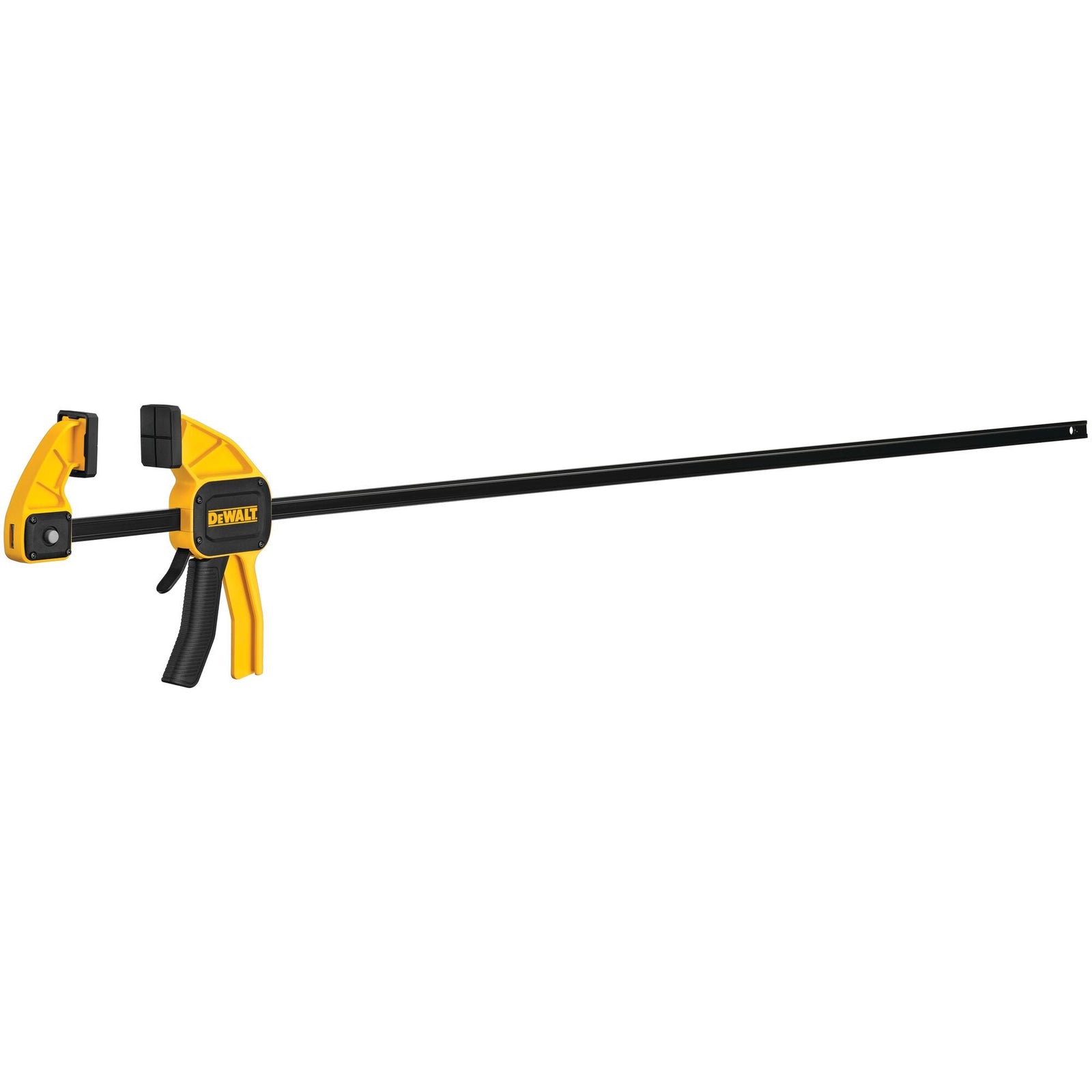

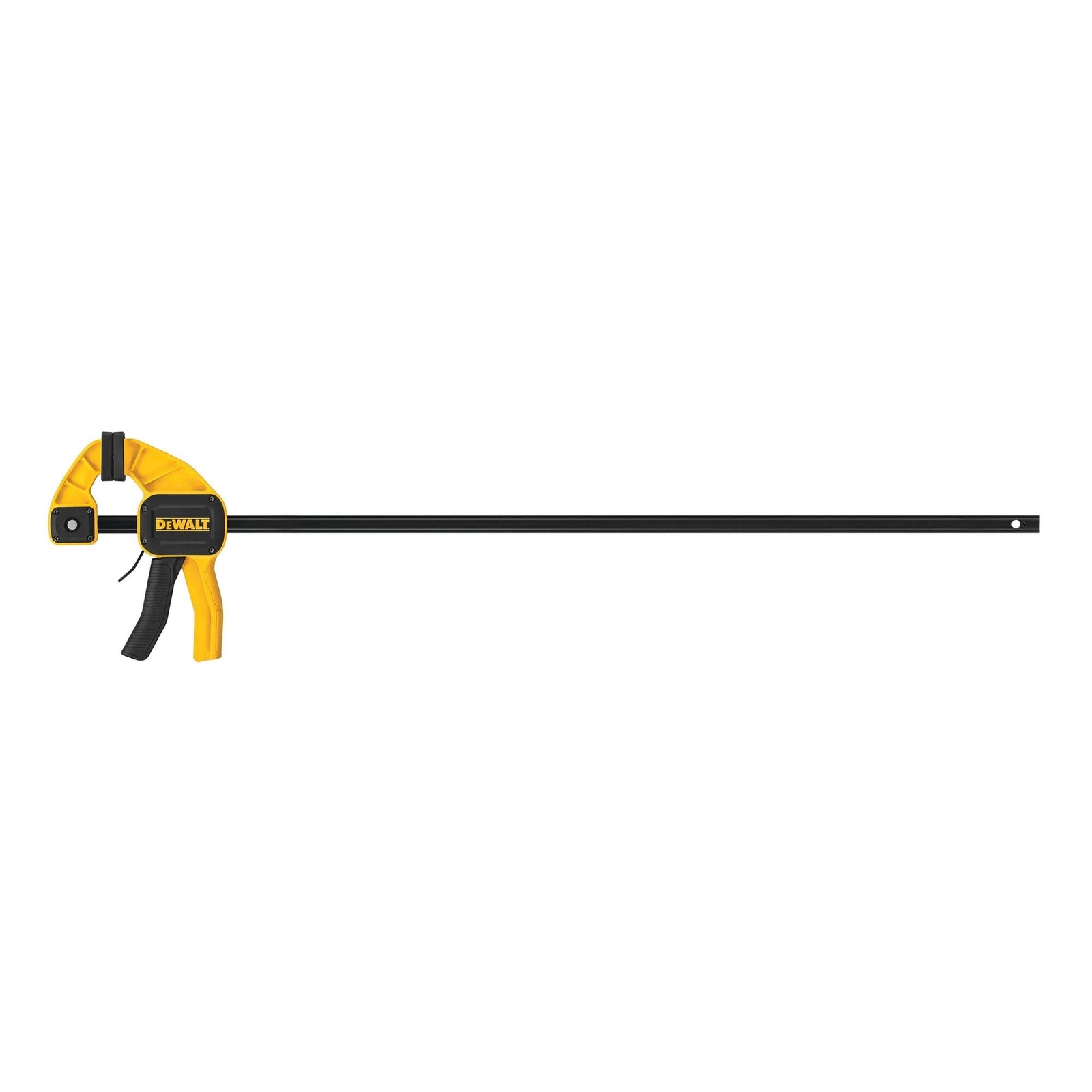

DeWalt DWHT83195 36" Large Trigger Clamp
The 36-inch large bar clamp is versatile and easy to use. Its reinforced nylon body and heat-treated steel bar are strong and durable. With 300-pounds of clamping force, 3-1/4" throat depth, quick change button for easy conversion to a spread and removable jaw pads to help reduce marring, this clamp was built to exceed the expectations of professional contractors.
Applications
- General Contractors
- Cabinet Makers
- Cabinet Installers
- Carpenters
Specifications
|
Average Clamping Force [Kg]
|
135
|
|
Bar Length [mm]
|
1095
|
|
Bar Material
|
Black Oxide Carbon Steel I-Beam
|
|
Bar Thickness [mm]
|
5
|
|
Body Material
|
Plastic
|
|
Clamping Capacity [mm]
|
925
|
|
Clamping Force [Kg]
|
135
|
|
Clamping Force [lbs]
|
300
|
|
Clamps and Vices Product Type
|
Trigger Clamp / One Handed Bar Clamp
|
|
Handle Material
|
Plastic
|
|
Has Quick Release Mechanism?
|
Yes
|
|
Has Safety Stop?
|
Yes
|
|
Jaw Depth [mm]
|
50
|
|
Jaw Pads Material
|
Non-Marring
|
|
Jaw Pad Type
|
Fix
|
|
Jaw Width [mm]
|
40
|
|
Max. Clamping Force [Kg]
|
135
|
|
Max. Jaw Opening [mm]
|
930
|
|
Packaging
|
Hang Tag
|
|
Pad Dimensions l x w x h [in]
|
40mmx50mmx10mm
|
|
Product Dimensions w/o Packaging l x w x h [in]
|
1100x250mmx40mm
|
|
Product Height [mm]
|
45
|
|
Product Length [mm]
|
1100
|
|
Product Weight [g]
|
1000
|
|
Product Weight [Kg]
|
1
|
|
Product Width [mm]
|
250
|
|
Spreading Capacity [mm]
|
1100
|
|
Spreading Function
|
Yes
|
|
Sustained Clamping Force [Kg]
|
135
|
|
Throat Depth [in]
|
3-1/4
|
|
Throat Depth [mm]
|
80
|
Additional Features
- One-handed operation for ease of use
- Quick change button allows for easy conversion to a spreader
- Removable jaw pads help reduce marring
Includes
Warranty Information
We’re confident of the quality of our products, and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
